UCS

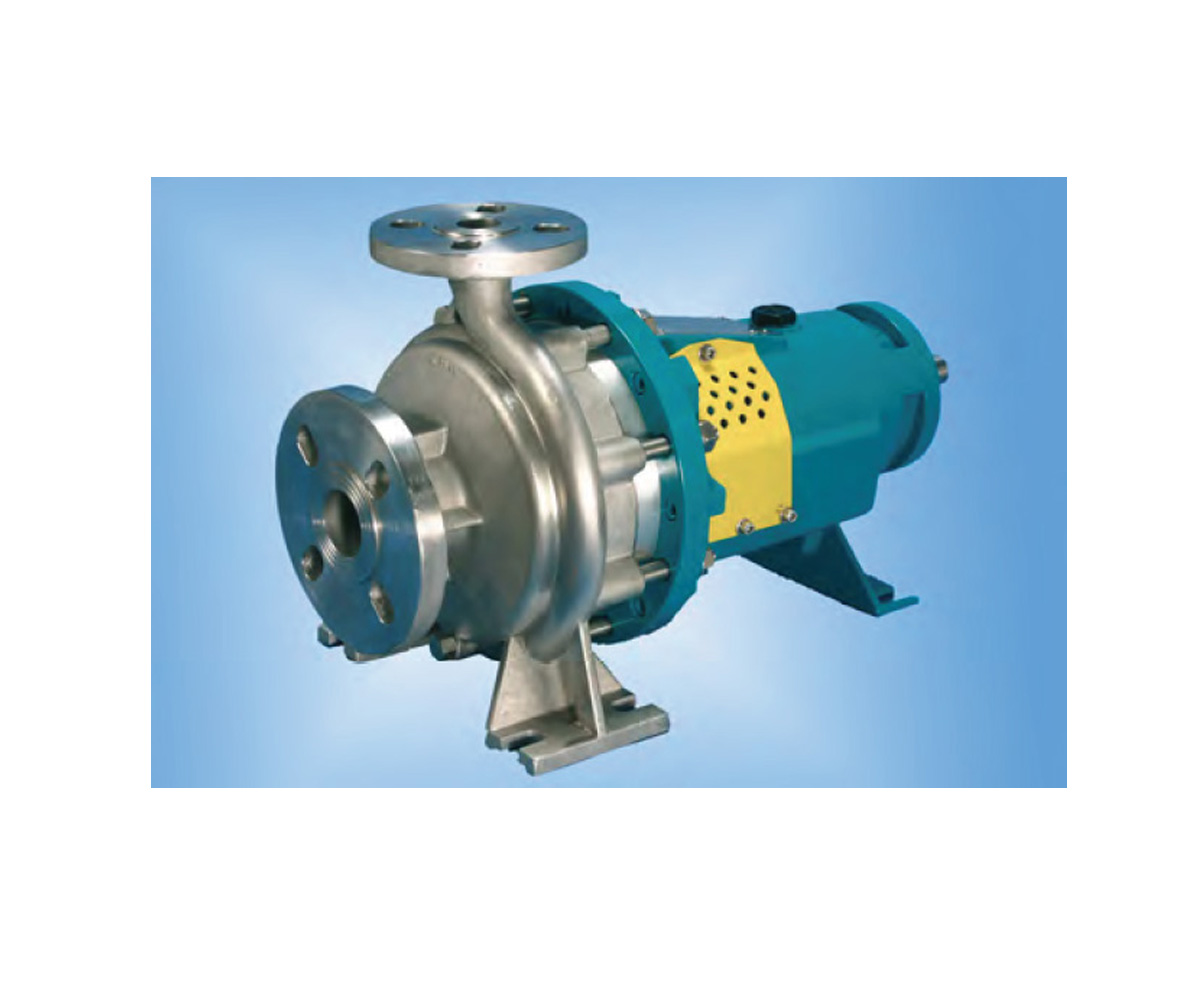

UCS horizontal centrifugal pump




UCS are single-stage horizontal centrifugal pumps with conventional mechanical sealing system. Connected to the driving part by means of a spacer coupling (back pull-out version) and installed on a common baseplate, their design is fully compliant with standards DIN 24256 and ISO 2858. They can be manufactured from stainless steel or special alloys. Operating temperatures range from cryogenic to +200°C. UCS series pumps can mount various types of single, double or cartridge mechanical seals of the top domestic and international brands. Generously-sized shaft and bearings, closed, open or open vortex impeller with reduced overhang and tapered stuffing box with abrasion-resistant flow-regulating baffles make this series of Hi-Tech pumps ideally suited for the most demanding process services.

These pumps are typically used in all industrial sectors for the transfer of liquids, in particular: corrosive liquids, slurry, liquids containing crystals, dirty liquids, effluents and chemical wastewater.



Technical features
Pump type Close-coupled centrifugal pump with mechanical seal
Construction materials AISI 316L (standard) - Hastelloy-C (optional)
Liquids handled Chemical, toxic or flammable liquids
Performances Q max = 80 m3/h H=65m
Motors Electrical from 0.75 kW to 30.0 kW
Max temperature from -30 °C to +200 °C
Pressure ratings allowed from PN10 to PN40
Max viscosity 400 cSt max
Pass solids Max concentration 5 % in weight
Hardness 800 Vk
Size max. 250 µm

Hydraulic performances

Dimensions
UCS bare shaft dimensions
