UTS-B

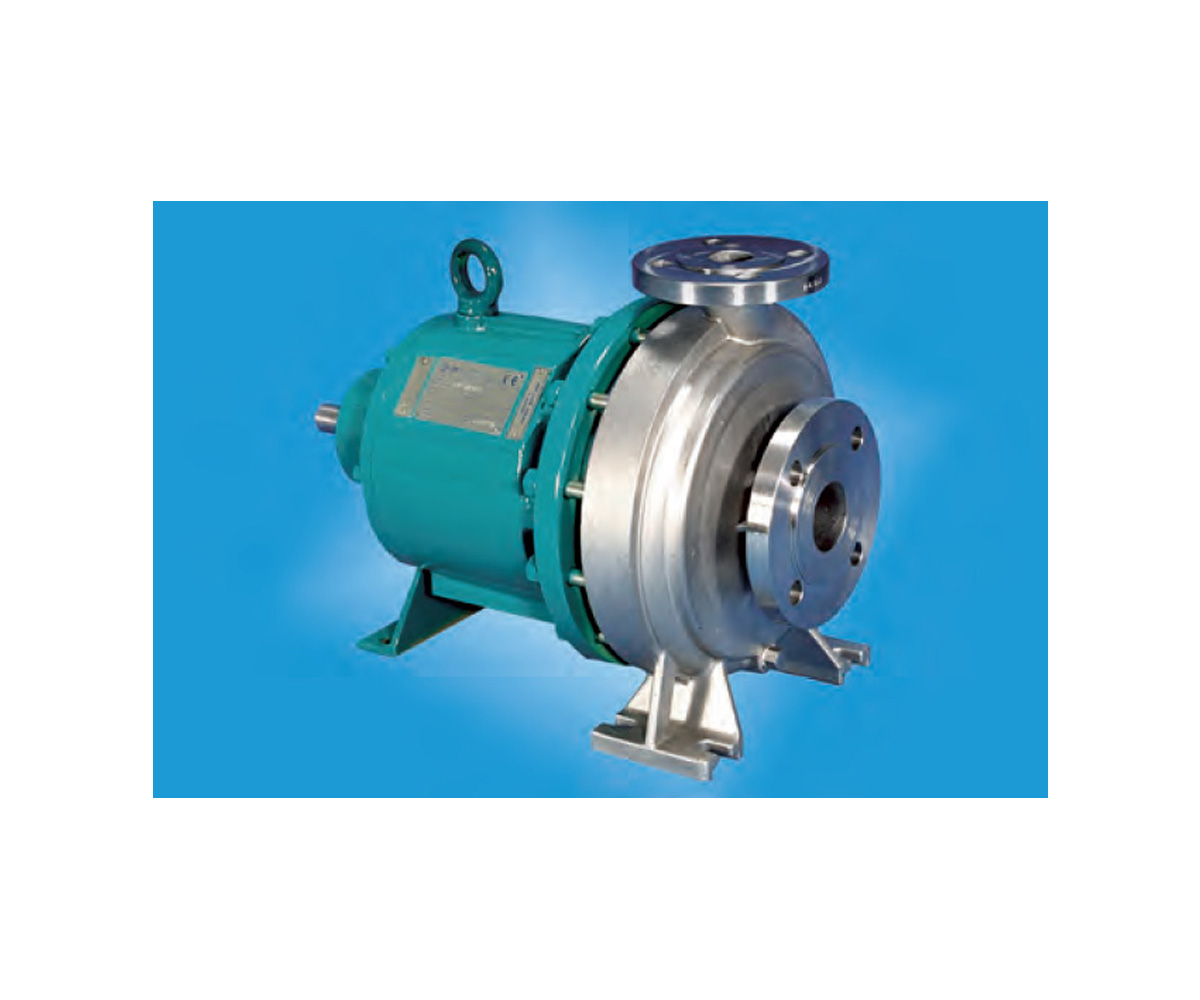

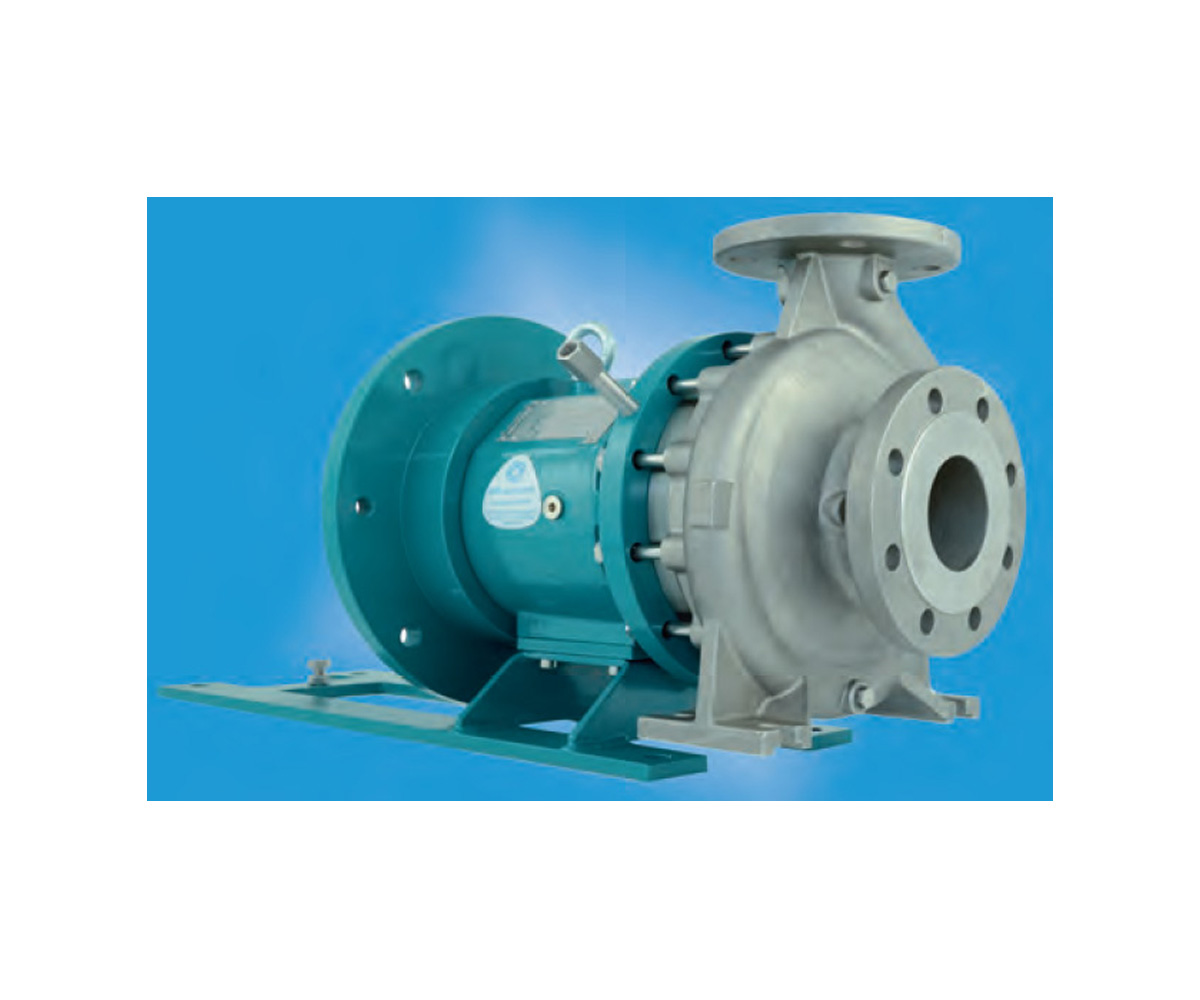

UTS-B magnetic drive pump




UTS-B are single-stage magnetic drive centrifugal pumps. Despite being the close-coupled type, they meet the requirements of standards DIN 24256 and ISO 2858. Motion is transmitted by magnetic couplings, thus avoiding a mechanical connection between the impeller and driving part. The absence of drive shaft and respective sealing systems removes the risk of leakage of the pumped product. Hydraulic thrust control, optimised internal lubrication, hard-wearing bushings and other components, excellent hydraulic performance and simple maintenance make UTS-B pumps of unrivalled versatility. They can be manufactured from stainless steel or special alloys. Operating temperatures range from cryogenic to +180°C.

The build specifications of these pumps make them especially suitable for the replacement of machinery of similar type and/or different materials (revamping of existing systems).



Technical features
Pump type Close-coupled horizontal centrifugal pump with motor on B5 or B14 frame
Construction materials AISI 316L (standard) - Hastelloy-C (optional)
Liquids handled Chemical, toxic or flammable liquids
Performances Q max = 180 m3/h H=100m
Motors Motori elettrici da 1,1 kW (gr. 80) a 18,5 kW (gr. 132)
Max temperature PP: da -120 °C a +180 °C
Rating di pressione ammessi da PN16 a PN40
Max viscosity 400 cSt max
Pass solids Max concentration 2 % in weight
Hardness 800 Vk
Size max. 250 µm

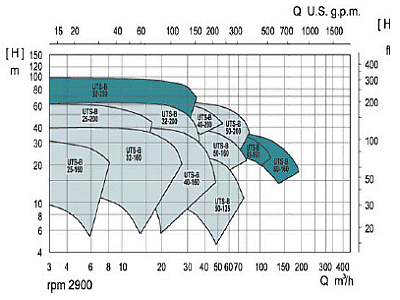

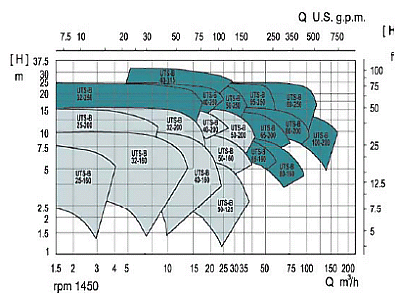

Hydraulic performances

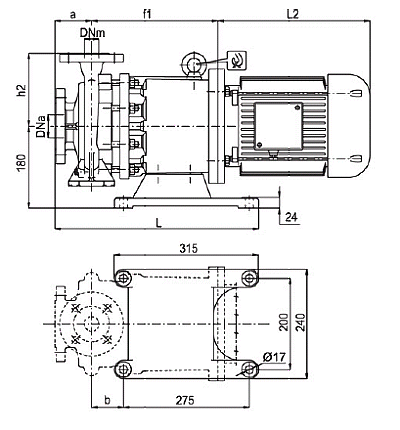

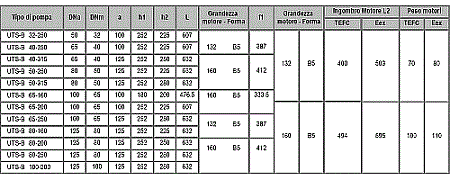

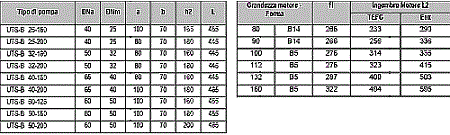

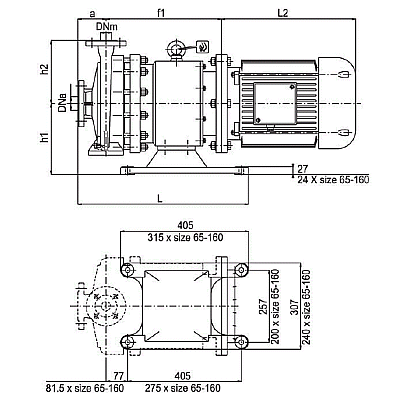

Dimensions
1st support dimensions
