ZC-SUB

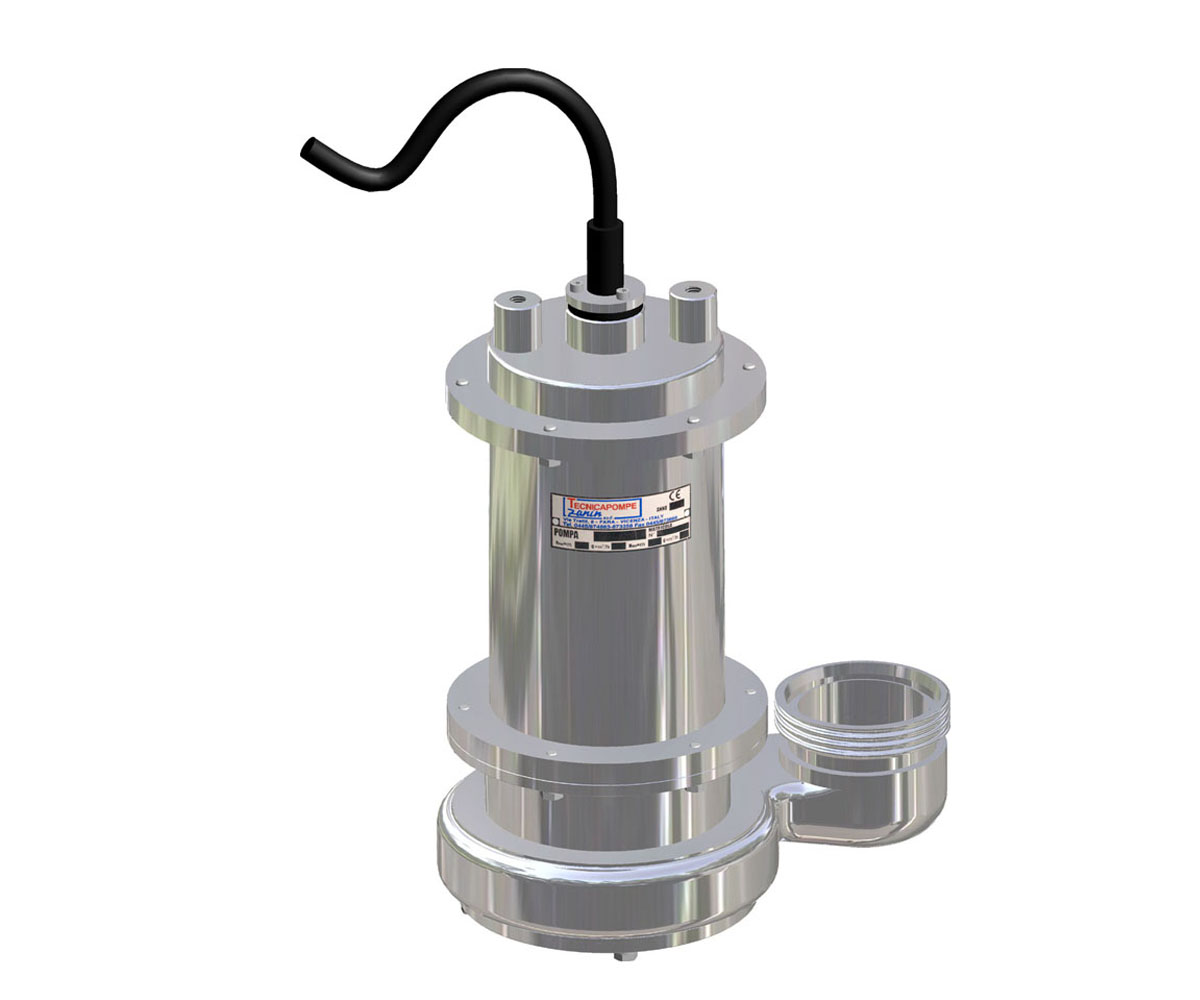

Submersible Pumps ZC-SUB




Used to transfer liquids with or without solid particles in suspension from vats or underground tanks.
Also installed on vacuum filters in the wine industry.

WHY ZC-SUB?

A submersible pump is required to move the liquid when the height between the level of liquid and suction inlet exceeds the limit typical of conventional pumps (usually around 7-9 m).



TECHNICAL FEATURES:
Material: AISI 316

Impeller: Semi-open 4 blades
Ø min 127 – Ø max 145 (mm)
Connections: DIN 11851 (standard), others on request.
Motor: 2 poles (2900 rpm), I.CI. F – IP68, 400V – 3Ph – 50Hz



PERFORMANCE:
Capacity up to 60 m³/h.
Total head up to 25 metres.
Max Ø solid particles in suspension 20 mm.
Max workable viscosity 1000 cP.
